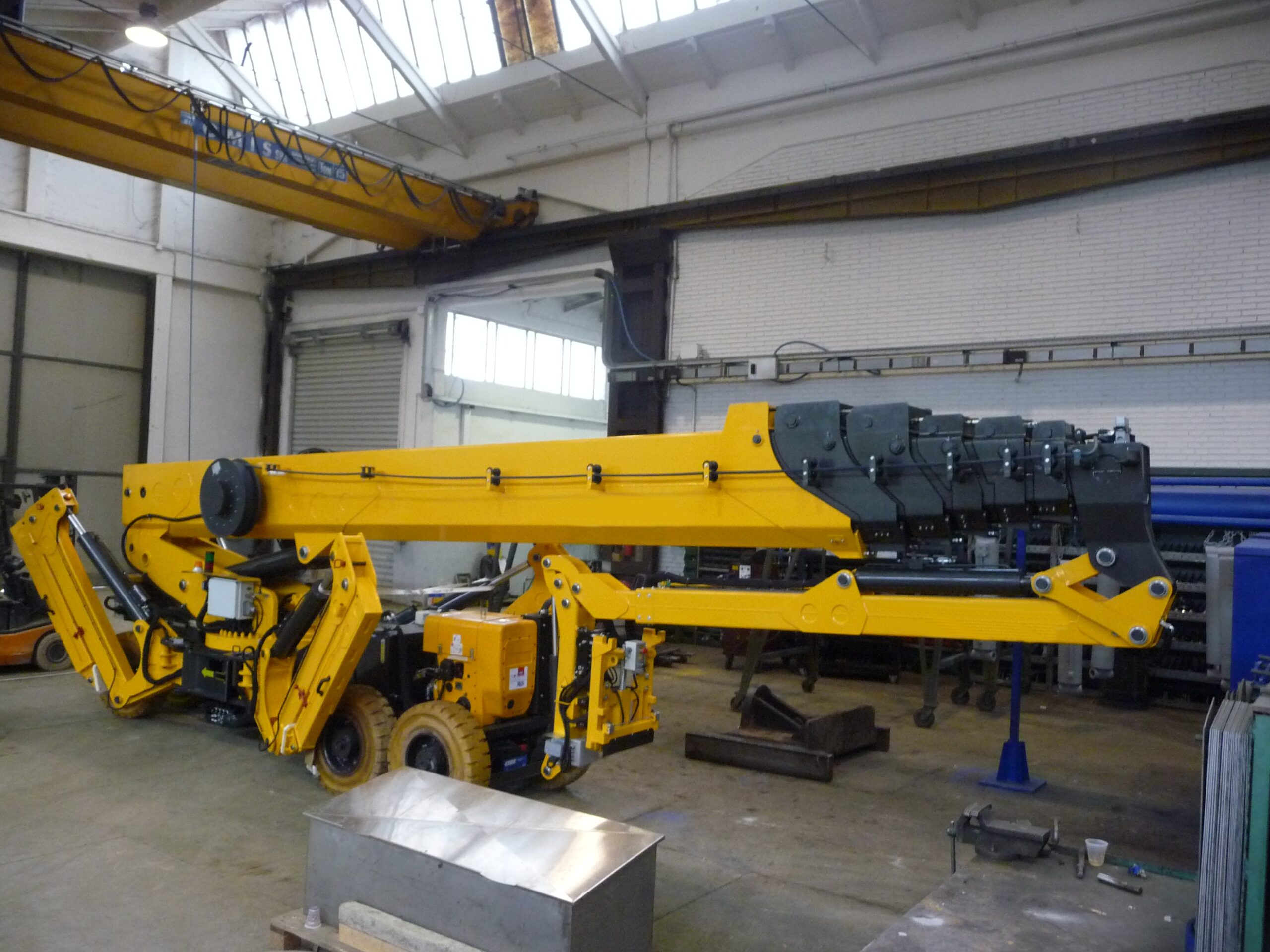

EasyLift by UPequip USA
Biggest of the of the Easy Lift series
Ready to put the 139-52STJW to work? Get a personalized quote from our US team — same-day response, delivered to all 50 states.
| Working height | 139′ |
| Horizontal outreach | 52′ |
| Total width | 51″ |
| 3'' standard footprint | 17' 2" X 20' |
| Overall weight | 18,734 lbs |
| Overall stowed length | 24' 11" |
| Ultra-long telescopic jib | 21′ |
The EPA Tier 4 Certified Hatz 4H50 turbo-diesel engine offers the best fuel and emission efficiency with common rail injection. The extremely tough and quiet engine offers TVCS (Three Vortex Combustion System) for better emission and lower fuel consumption. The 208-240V AC motor allows drive and boom operation with no emission, ideal for indoor use.
The EPA Tier 4 Certified Hatz 4H50 turbo-diesel engine offers the best fuel and emission efficiency with common rail injection. The extremely tough and quiet engine offers TVCS (Three Vortex Combustion System) for better emission and lower fuel consumption. The electric power to work indoors without emissions is provided by a Kaitec Lithium-Ion battery pack, holder of the longest electric vehicle range world record.Â
This configuration is made for those who primarily work indoors. Equipped with the world record holding company for long range vehicle battery operation Kaitec lithuim-ion battery pack. No wire, no combustion and no boundaries. The ultra-fast charger can be powered by either 110V or 208-240V AC power.
The active stability management system is composed of redundant switches on each outrigger and is designed to prevent dangerous movements.
All units are equipped standard with GFI double outlet, with cable running through the boom. Perfect to use electric tools up in the basket.
In case of minor problems or accidents, emergency descent system will get the operator down by doing boom operations, outrigger setup and drive the unit if need be. Units are always equipped with manual pumps to move the oil, but an electric pump is available as an option.
Multi-layer powder coat baked paint is applied before parts assembly, offering the same protection everywhere on parts. Customs colors are available in option.
A key element to refined working position, real hydraulic rotation offers better insertion and final adaptability, and allows optimal working conditions.
► VIDEO: Rotation 90 - 90 full hydraulicThe hydraulic compensation system will keep the basket leveled to the ground all the time without any interaction required from the operator. For specific needs and tricky situations, there is a manual override.
The last section before the basket is called the jib. It is live even at full basket weight capacity. It offers maximum flexibility for a perfect final positioning at the working area. This unit is equipped with a 21 foot telescopic jib, offering unequalled insertion capabilities.
A standard 3000 PSI air/water line runs from ground to basket through the boom to offer more flexibility and less weight in the basket.
The standard lightweight aluminum detachable basket can be removed in seconds from the unit to allow insertion in tight places, doors, gates, etc. Optional casters can be installed on baskets so they can be transported easily.
► VIDEO: Basket removal Large unitsFor faster and more efficient troubleshooting from basket and base, the easy-to-read pilot lamps will quickly tell which condition isn’t met or what the current situation is.
► VIDEO: Description of a Main BoxAll pivot points are easily accessible to prevent jerking, squeaking and insure a smooth pivot articulation.
All Easy Lift units’ booms and structural components are made from Swedish high tensile flexible Domex SSAB steel. It allows the production of smaller, yet more resistant components.
► VIDEO: Boom flex demonstrationProportional ground controls allow smooth movements from both ground and basket controls. From the basket, an electric signal is sent down to ground and levers perform movements.
Made of durable rubber, the standard wheels are built to last.
The hydraulic compensation system will keep the basket leveled to the ground all the time without any interaction required from the operator. For specific needs and tricky situations, there is a manual override.
This audible alarm will go as long as the unit moves, in combustion or electric mode. With safety standards present and future, this is a great safety asset.
The wind factor needs to be considered at all time when working in heights. Easy Lift units are fully safe under 28 Mph.
The active stability management system is composed of redundant switches on each outrigger and is designed to prevent dangerous movements.
The anti-overload system is designed to prevent operation of a unit with an overloaded basket. An alarm and a red light, both at base and basket, will warn you. This system can be verified by operator during daily inspection.
In case of minor problems or accidents, emergency descent system will get the operator down by doing boom operations, outrigger setup and drive the unit if need be. Units are always equipped with manual pumps to move the oil, but an electric pump is available as an option.
Execute rapid emergency maneuvers with REAL live hydraulic joysticks for precision and safety in the movements. Get your operator down without stumbling in the process.
► VIDEO: LIVE hydraulic emergency controlsAll Easy Lift units’ booms and structural components are made from Swedish high tensile flexible Domex SSAB steel. It allows the production of smaller, yet more resistant components.
► VIDEO: Boom flex demonstrationWith increasing safety regulations, this small option will soon make a huge difference and determine whether you will be able to go or not on a jobsite. Well worth it!
Bringing a harmed operator or broken basket control to the ground is always possible from the base using the emergency descent procedure. The electric 12V emergency pump just makes it easier since no manual pumping is required to move the oil and build pressure.
► VIDEO: Difference between manual & 12V electricDespite all your planning and care, accidents unfortunately happen. The 1/4-inch heavy duty thick aluminum plates composing the hostile kit will greatly minimize the impacts of such accidents on vital components of the unit: ground lever controls, outrigger switches and cylinders.
This is defined by how easy will you be able to climb any given obstacle (stairways, slopes, crosswalks, etc.) with limited use of ramps, wood blocks or else. The knowledge of this standard Easy Lift feature is crucial to make the best choice. This will be a blessing each and every time the unit will be used.
► VIDEO: Climbing ability vs departure angleMost of the components used in our units are commonly used in industrial mechanical equipment on the market and are available everywhere in North America.
There are multiple outrigger positions since every outrigger is mounted on a swing-out pivot, allowing standard position (wide), narrow position or, for crowded floors, it is possible to mix positions for more flexibility.
► VIDEO: Turret rotation amplitude demonstrationThe last section before the basket is called the jib. It is live even at full basket weight capacity. It offers maximum flexibility for a perfect final positioning at the working area. This unit is equipped with a 21 foot telescopic jib, offering unequalled insertion capabilities.
All units are equipped standard with GFI double outlet, with cable running through the boom. Perfect to use electric tools up in the basket.
A standard 3000 PSI air/water line runs from ground to basket through the boom to offer more flexibility and less weight in the basket.
Only one 110V AC standard plug is necessary to warm your hydraulic oil tank, maintain your battery fully charged and insure that your unit will start in cold weather. A must-have option for those whose next project is a garage for equipment.
With the activation of a single button, your unit will level in a perfect way, regardless of the surface. A nice-to-have option to consider if moving your unit often is required.
Although it is far more convenient to be two men to move a basket, casters will make your task possible even if you’re alone. No need to carry a dolly, just pure efficiency.
► VIDEO: How easy to move basket with castersNever leave black marks anymore on any surface: concrete, brick patio, stone, marble, wood, epoxy coating, and so on. You will drive on non-marking wheelos with peace of mind and won’t need to bite on your profit to clean up afterwards.
► Video comparing black vs non-marking tracksAll Easy Lift units’ booms and structural components are made from Swedish high tensile flexible Domex SSAB steel. It allows the production of smaller, yet more resistant components.
► VIDEO: Boom flex demonstrationMulti-layer powder coat baked paint is applied before parts assembly, offering the same protection everywhere on parts. Customs colors are available in option.
The electrical system is composed of standard 12V, North American, easy to find, Solid State, and compatible components. No hassle in finding 24V parts!
Wear pads can be adjusted easily, no shimming required. Most can be replaced without the need to de-booming for extra convenience.
All pivot points are easily accessible to prevent jerking, squeaking and insure a smooth pivot articulation.
Only one 110V AC standard plug is necessary to warm your hydraulic oil tank, maintain your battery fully charged and insure that your unit will start in cold weather. A must-have option for those whose next project is a garage for equipment.
Despite all your planning and care, accidents unfortunately happen. The 1/4-inch heavy duty thick aluminum plates composing the hostile kit will greatly minimize the impacts of such accidents on vital components of the unit: ground lever controls, outrigger switches and cylinders.
Very popular in the Utility and Tree Care markets, the one-man fiberglass basket will bring even more efficiency to those who often work in very tight places and hard-to-reach areas. There is no need to remove it at insertion and its dimensions makes it easy to insert within structures, branches, etc.
With the activation of a single button, your unit will level in a perfect way, regardless of the surface. A nice-to-have option to consider if moving your unit often is required.
Multi-layer powder coat baked paint is applied before parts assembly, offering the same protection everywhere on parts. This option will allow color matching through the RAL International Color Code to paint your unit with your own company colors.
The outriggers needs some travel when they lift tracks off the ground. There are a few options available: 16 X 24 or 20 X 40 with or without sliding rails. Custom-made Teflon pads are designed to insure best load of each leg as well as best performance overall for operator.
Although it is far more convenient to be two men to move a basket, casters will make your task possible even if you’re alone. No need to carry a dolly, just pure efficiency.
► VIDEO: How easy to move basket with castersOnly one 110V AC standard plug is necessary to warm your hydraulic oil tank, maintain your battery fully charged and insure that your unit will start in cold weather. A must-have option for those whose next project is a garage for equipment.
