EasyLift by UPequip USA
Smallest Footprint
Ready to put the 51-30AJ to work? Get a personalized quote from our US team — same-day response, delivered to all 50 states.
| Working height | 51′ |

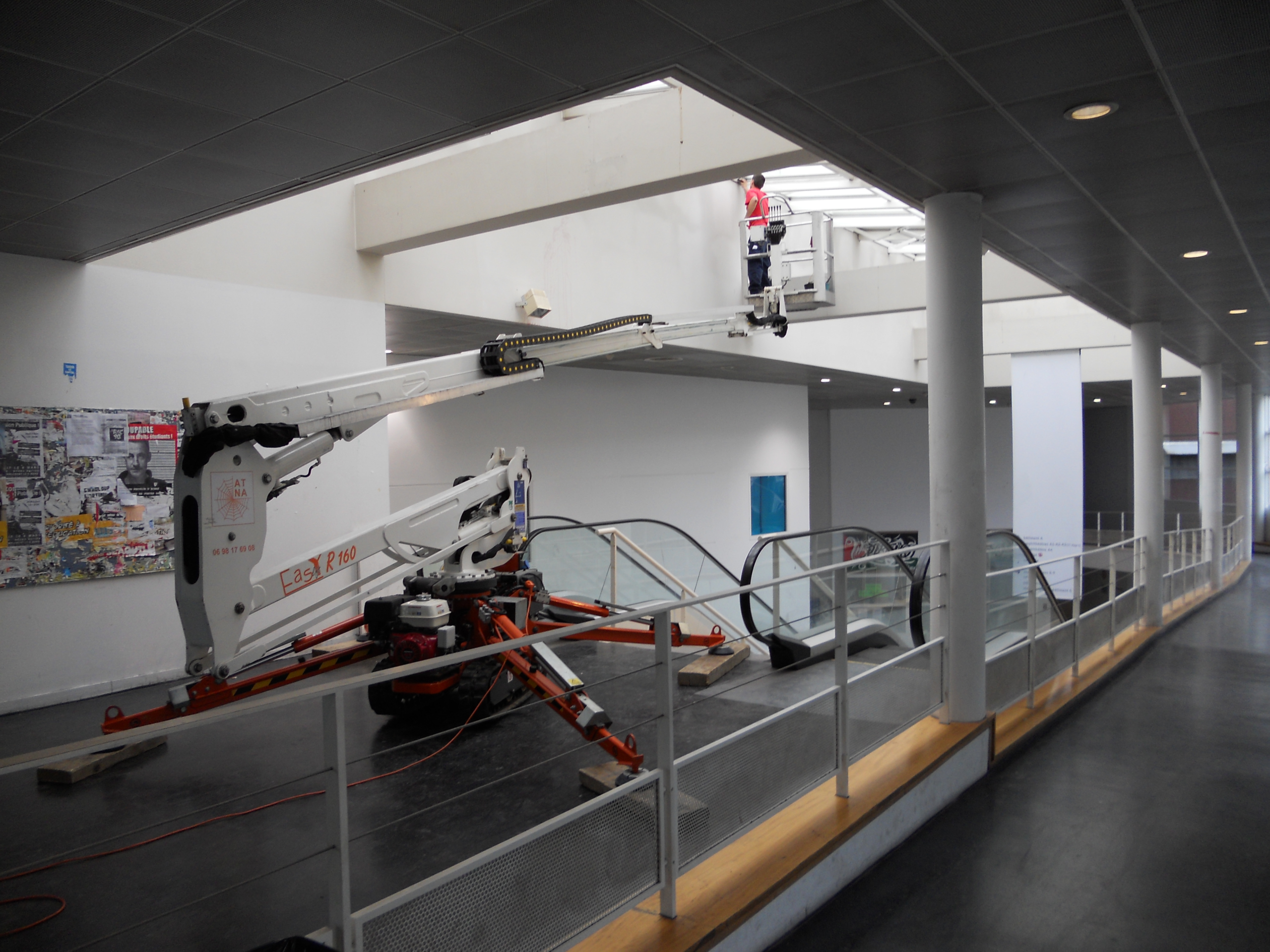

| Horizontal outreach | 30′ |
| Total width | 32.5″ |
| Standard footprint | 9' 2" X 9' 2" |
| Overall weight | 4,299lbs |
| Overall stowed length | 15' 5" |
This configuration offers both combustion and electric power. Both motors have their own set of pumps and are totally independent from each other. This unit is equipped with Honda GX-390. Aside from an impressive record of reliability, components are available everywhere. The 110V AC electric motor will allow drive and boom operation with no emission and is ideal for indoor use.
The EPA Certified air cooled Hatz 1B50 model provides peace of mind. This extremely tough engine comes in a single block, without any external added components such as fan, alternator and strap. This brings easiness of maintenance, reliability and durability to your combustion power source. The 110V AC electric motor allow drive and boom operation with no CO2 emission.
This configuration is made for those who primarily work indoors. Equipped with the world record holding company for long range vehicle battery operation Kaitec lithuim-ion battery pack. No wire, no combustion and no boundaries. The ultra-fast charger can be powered by either 110V or 208-240V AC power.
Offering reach almost all around the clock, the 340 degree turret rotation allows working at multiple working areas from the same stabilization spot.
► VIDEO: Rotation seen from aboveStrategically positioned tie-down anchor points in the back and front of your unit will ease your transport on a trailer.
The last section before the basket is called the jib. It is live even at full basket weight capacity. It offers maximum flexibility for a perfect final positioning at the working area. It also can be elevated while driving to allow better clearance of obstacles.
► VIDEO: Jib movement with full basket capacityThe active stability management system is composed of redundant switches on each outrigger and is designed to prevent dangerous movements.
Providing a major increase in both stability and weight distribution, black deep thread rubber tracks also bring an enhanced climbing capability to your unit. Made of durable rubber with a steel belt reinforcement, they are built to last.
All hoses and harnesses are routed outside of the boom, and protected by heavy duty unbreakable thermoplastic power track allowing smooth boom telescopic extension. Also, all hoses and harnesses can be inspected and replaced quickly right on the job site.
This audible alarm will go as long as the unit moves, in combustion or electric mode. With safety standards present and future, this is a great safety asset.
The LIVE hydraulic levers/ grippers allow smooth movements both from ground controls and basket controls. ( the system may be different on each model )
► Full hydraulic. Full SimpleIn case of minor problems or accidents, emergency descent system will get the operator down by doing boom operations, outrigger setup and drive the unit if need be. Units are always equipped with manual pumps to move the oil, but an electric pump is available as an option.
To insure increased accuracy of your maintenance schedule, the hour meter will be of great help to follow up on inspections and maintenance.
On top of being safe due to their location on the machine and the fact that no spreader bars are required, top mount lifting points allow you to insert your unit in even harder-to-reach areas and places with a crane.
► VIDEO: unit lifted with craneAll units are equipped standard with GFI double outlet, with cable running through the boom. Perfect to use electric tools up in the basket.
The active stability management system is composed of redundant switches on each outrigger and is designed to prevent dangerous movements.
In case of minor problems or accidents, emergency descent system will get the operator down by doing boom operations, outrigger setup and drive the unit if need be. Units are always equipped with manual pumps to move the oil, but an electric pump is available as an option.
All Easy Lift units’ booms and structural components are made from Swedish high tensile flexible Domex SSAB steel. It allows the production of smaller, yet more resistant components.
► VIDEO: Boom flex demonstrationThe hydraulic compensation system will keep the basket leveled to the ground all the time without any interaction required from the operator. For specific needs and tricky situations, there is a manual override.
All units are equipped with 2 standard harness anchor points located inside the aluminum basket. An additional anchor point is located on the fiberglass basket’s floor if the unit is equipped with this basket.
The wind factor needs to be considered at all time when working in heights. Easy Lift units are fully safe under 28 Mph.
All units are equipped with independently operable high speed booms, allowing far better insertion strategies and a lot more flexibility.
The last section before the basket is called the jib. It is live even at full basket weight capacity. It offers maximum flexibility for a perfect final positioning at the working area. It also can be elevated while driving to allow better clearance of obstacles.
► VIDEO: Jib movement with full basket capacityAll units are equipped standard with GFI double outlet, with cable running through the boom. Perfect to use electric tools up in the basket.
For faster and more efficient troubleshooting from basket and base, the easy-to-read pilot lamps will quickly tell which condition isn’t met or what the current situation is.
► VIDEO: Description of a Main BoxDesigned to easily provide extensive stability to this particularly narrow unit, the real hydraulic track extension system will increase ground clearance and provide extensive stability for loading and climbing.
A standard 3000 PSI air/water line runs from ground to basket through the boom to offer more flexibility and less weight in the basket.
Offering reach almost all around the clock, the 340 degree turret rotation allows working at multiple working areas from the same stabilization spot.
► VIDEO: Rotation seen from aboveA key element to refined working position, real hydraulic rotation offers better insertion and final adaptability, and allows optimal working conditions.
► VIDEO: Rotation 90 - 90 full hydraulicThe LIVE hydraulic levers/ grippers allow smooth movements both from ground controls and basket controls. ( the system may be different on each model )
► Full hydraulic. Full SimpleAll hoses and harnesses are routed outside of the boom, and protected by heavy duty unbreakable thermoplastic power track allowing smooth boom telescopic extension. Also, all hoses and harnesses can be inspected and replaced quickly right on the job site.
All Easy Lift units’ booms and structural components are made from Swedish high tensile flexible Domex SSAB steel. It allows the production of smaller, yet more resistant components.
► VIDEO: Boom flex demonstrationWear pads can be adjusted easily, no shimming required. Most can be replaced without the need to de-booming for extra convenience.
All pivot points are easily accessible to prevent jerking, squeaking and insure a smooth pivot articulation.
The electrical system is composed of standard 12V, North American, easy to find, Solid State, and compatible components. No hassle in finding 24V parts!
Minimal cover dismounting is required to access most of the main emergency components of the unit. Switches and hydraulics are easily accessible, allowing inspection and repairs right on the job site if required.
The outriggers needs some travel when they lift tracks off the ground. There are a few options available: 16 X 24 or 20 X 40 with or without sliding rails. Custom-made Teflon pads are designed to insure best load of each leg as well as best performance overall for operator.
The wireless remote control will take charge of all movements for drive, outrigger and boom operations from the ground. It also provides the best wireless perspective and flexibility when driving in tight places. An on-board battery charger and an extra battery are included.
► VIDEO: Short demonstration of wireless remoteWith the activation of a single button, your unit will level in a perfect way, regardless of the surface. A nice-to-have option to consider if moving your unit often is required.
Very popular in the Utility and Tree Care markets, the one-man fiberglass basket will bring even more efficiency to those who often work in very tight places and hard-to-reach areas. There is no need to remove it at insertion and its dimensions makes it easy to insert within structures, branches, etc.
Multi-layer powder coat baked paint is applied before parts assembly, offering the same protection everywhere on parts. This option will allow color matching through the RAL International Color Code to paint your unit with your own company colors.
This 2-Man fiberglass basket provides more flexibility regarding what tools can be carried up for work. The fiberglass makes insertion in branches as smooth as it can be.
Never leave black marks anymore on any surface: concrete, brick patio, stone, marble, wood, epoxy coating, and so on. You will drive on non-marking tracks with peace of mind and won’t need to bite on your profit to clean up afterwards.
► Video comparing black vs non-marking tracksWith increasing safety regulations, this small option will soon make a huge difference and determine whether you will be able to go or not on a jobsite. Well worth it!
Although it is far more convenient to be two men to move a basket, casters will make your task possible even if you’re alone. No need to carry a dolly, just pure efficiency.
► VIDEO: How easy to move basket with castersBringing a harmed operator or broken basket control to the ground is always possible from the base using the emergency descent procedure. The electric 12V emergency pump just makes it easier since no manual pumping is required to move the oil and build pressure.
► VIDEO: Difference between manual & 12V electricDespite all your planning and care, accidents unfortunately happen. The 1/4-inch heavy duty thick aluminum plates composing the hostile kit will greatly minimize the impacts of such accidents on vital components of the unit: ground lever controls, outrigger switches and cylinders.
Only one 110V AC standard plug is necessary to warm your hydraulic oil tank, maintain your battery fully charged and insure that your unit will start in cold weather. A must-have option for those whose next project is a garage for equipment.
The wired remote control option provides perspective. Driving and operating outriggers is possible from the quick disconnect remote control allowing a better view of obstacles and terrain slopes & layouts. It comes standard with a neck strap for more stability, movement precision and safety.
For a better view of the working area, under all circumstances, this powerful lamp will bring the sun everywhere.
Without a doubt purchasing a lift from UPequip was one of the most lucrative purchases in my career . As a 20 year tree climbing veteran it was a nice break up in the daily grind to not have to climb everything all the time. I love climbing but you simply cannot beat the production…
It’s been a while since I’ve posted anything here, but I felt compelled to share my experience with the folks @ UP Equipment. While I haven’t bought a significant number of brand new pieces of machinery, I have had years of experience trying to work with manufacturers to dial out the bugs and difficulties with…
As a customer from the US, I was a little apprehensive about buying equipment from a vendor in Canada for when repairs/maintenance issues arose, but UPequip has been very helpful and prompt in answering any questions we've had regarding our lift. Their customer service is excellent and they have always made getting my equipment back…
UpEquip has been valuable asset to our business. As an equipment rental company, our 70-36A spider lift was a phenomenal addition to our fleet. Alain was incredibly helpful during the buying process, and we know their service department is a quick phone call away should we need any assistance. Highly recommend!
I purchase a 61-36A machine a couple of years ago. Overall, I’m very happy with the machine and extremely happy with the service I’ve received from UPEquip. The machine suits my needs very well and have had few problems. I have had a few issues with electrical problems.. The AC/DC converter went bad twice but…
I purchased an EasyLift 87-48AJ from Up Equipment in March of 2020. It has done an excellent job for us, more than doubling production on any job requiring a climber. In fact, I no longer employ a climber. If I cannot get the EasyLift close enough to a tree on a prospective job, I simply…
If it breaks, we fix it so you can get back to work ASAP: that’s the UPequip promise.
With Easy Lift, you’re part of the family. We’ve got you covered!
Select your power configuration, options and delivery state. Our US team responds the same day with transparent pricing and expert guidance — no pressure, no surprises.
Prefer to talk? Call 1-844-UPEQUIP — real people, real answers, same day.
