EasyLift by UPequip USA
The Missing Link
Ready to put the 77-40AJ to work? Get a personalized quote from our US team — same-day response, delivered to all 50 states.

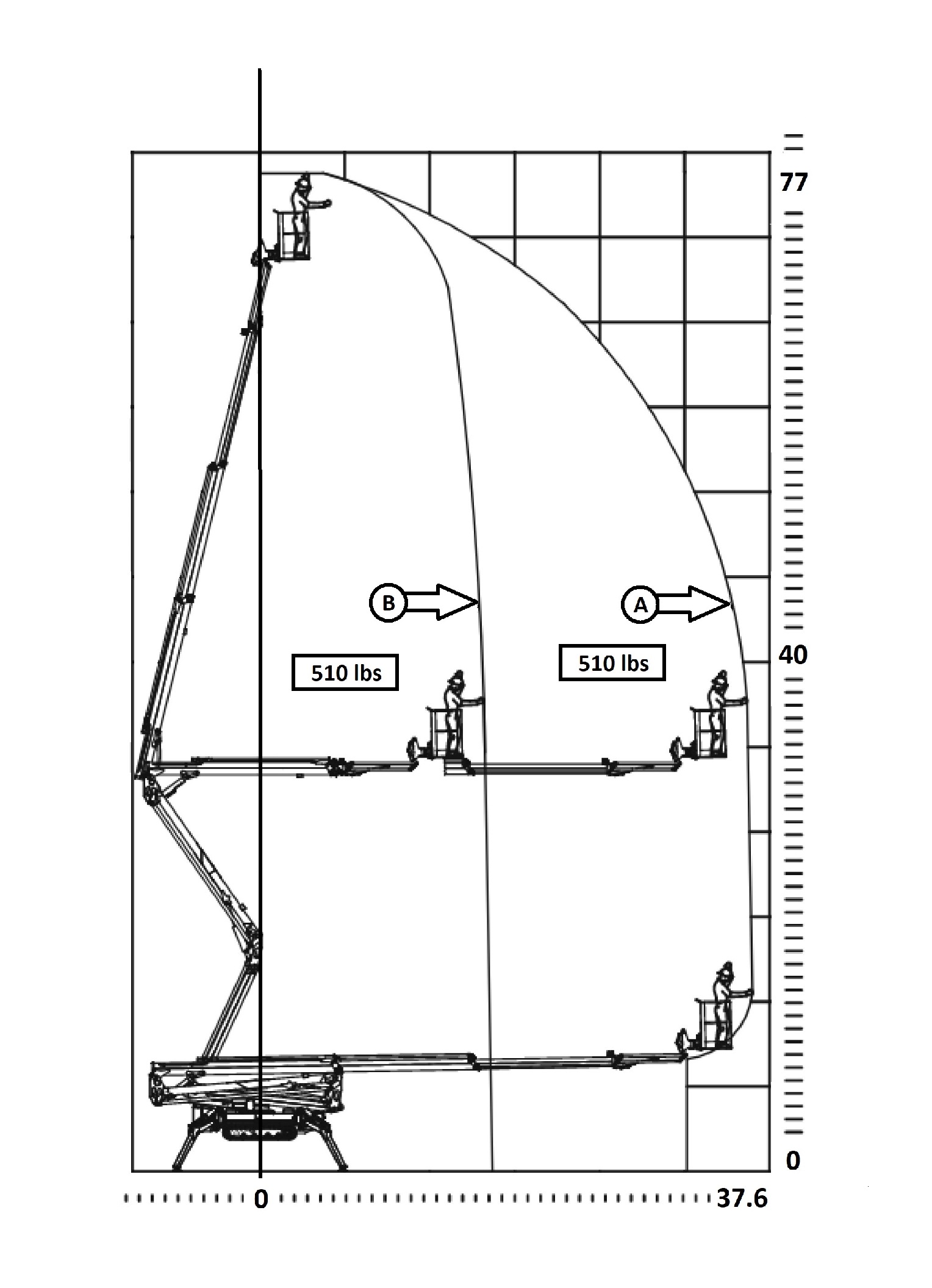

| Working height | 77' |
| Unrestricted outreach | 40' |
| Total width | 38" |
| Overall weight | 7,165 lbs |
The EPA Tier 4 Certified Kubota D902-E3B water cooled diesel engine with real 12V provides peace of mind. This extremely tough and quiet engine offers TVCS (Three Vortex Combustion System) for better emission and lower fuel consumption. The 110V AC electric motor allows drive and boom operation with no emission, when working indoors is required.
► VIDEO: Kubota & Electric motorsThe EPA Tier 4 Certified Kubota D902-E3B water cooled diesel engine with real 12V provides peace of mind. This extremely tough and quiet engine offers TVCS (Three Vortex Combustion System) for better emission and lower fuel consumption. The lithium-ion battery allows drive and boom operation with no emission when working indoors is required.
This configuration is made for those who primarily work indoors. Equipped with the world record holding company for long range vehicle battery operation Kaitec lithuim-ion battery pack. No wire, no combustion and no boundaries. The ultra-fast charger can be powered by either 110V or 208-240V AC power.
Offering reach even 20 degrees passed the 360 degrees “all around the clock” point, this great feature allows working at multiple areas from the same stabilization spot and is forgiving when you haven’t started in the right direction.
► VIDEO: rotation with outriggers in Narrow modeAll units are equipped standard with GFI double outlet, with cable running through the boom. Perfect to use electric tools up in the basket.
A standard 3000 PSI air/water line runs from ground to basket through the boom to offer more flexibility and less weight in the basket.
The standard lightweight aluminum detachable basket can be removed in seconds from the unit to allow insertion in tight places, doors, gates, etc. Optional casters can be installed on baskets so they can be transported easily.
► VIDEO: Basket removal Large unitsProviding a major increase in both stability and weight distribution, extra-long black rubber tracks also provide an enhanced climbing capability to your unit. Made of durable rubber with a steel belt reinforcement, they are built to last.
For faster and more efficient troubleshooting from basket and base, the easy-to-read pilot lamps will quickly tell which condition isn’t met or what the current situation is.
► VIDEO: Description of a Main BoxIn case of minor problems or accidents, emergency descent system will get the operator down by doing boom operations, outrigger setup and drive the unit if need be. Units are always equipped with manual pumps to move the oil, but an electric pump is available as an option.
This unit offers full horizontal outreach as a standard feature even when the basket is at full weight capacity.
All units are equipped with 2 standard harness anchor points located inside the aluminum basket. An additional anchor point is located on the fiberglass basket’s floor if the unit is equipped with this basket.
Multi-layer powder coat baked paint is applied before parts assembly, offering the same protection everywhere on parts. Customs colors are available in option.
All Easy Lift units’ booms and structural components are made from Swedish high tensile flexible Domex SSAB steel. It allows the production of smaller, yet more resistant components.
► VIDEO: Boom flex demonstrationTo insure increased accuracy of your maintenance schedule, the hour meter will be of great help to follow up on inspections and maintenance.
A key element to refined working position, real hydraulic rotation offers better insertion and final adaptability, and allows optimal working conditions.
► VIDEO: Rotation 90 - 90 full hydraulicDesigned to easily provide extensive stability to this particularly narrow unit, the real hydraulic track extension system will increase ground clearance and provide extensive stability for loading and climbing.
The LIVE hydraulic levers/ grippers allow smooth movements both from ground controls and basket controls. ( the system may be different on each model )
► Full hydraulic. Full SimpleAll hoses and harnesses are routed inside of the boom, and protected by a heavy duty unbreakable patented telescopic power track. All hoses and harnesses can be inspected and replaced quickly right on the job site.
The wireless remote control will take charge of all movements for drive, outriggers and boom operations from ground. It also provides the best wireless perspective and flexibility when driving in tight places. An on-board battery charger and extra battery are included.
► VIDEO: Short demonstration of wireless remoteThe hydraulic compensation system will keep the basket leveled to the ground all the time without any interaction required from the operator. For specific needs and tricky situations, there is a manual override.
Strategically positioned tie-down anchor points in the back and front of your unit will ease your transport on a trailer.
This audible alarm will go as long as the unit moves, in combustion or electric mode. With safety standards present and future, this is a great safety asset.
There are multiple outrigger positions since every outrigger is mounted on a swing-out pivot, allowing standard position (wide), narrow position or, for crowded floors, it is possible to mix positions for more flexibility.
► VIDEO: Turret rotation amplitude demonstrationThe wind factor needs to be considered at all time when working in heights. Easy Lift units are fully safe under 28 Mph.
The anti-overload system is designed to prevent operation of a unit with an overloaded basket. An alarm and a red light, both at base and basket, will warn you. This system can be verified by operator during daily inspection.
For faster and more efficient troubleshooting from basket and base, the easy-to-read pilot lamps will quickly tell which condition isn’t met or what the current situation is.
► VIDEO: Description of a Main BoxIn case of minor problems or accidents, emergency descent system will get the operator down by doing boom operations, outrigger setup and drive the unit if need be. Units are always equipped with manual pumps to move the oil, but an electric pump is available as an option.
Execute rapid emergency maneuvers with REAL live hydraulic joysticks for precision and safety in the movements. Get your operator down without stumbling in the process.
► VIDEO: LIVE hydraulic emergency controlsThe passive stability management system is a working envelope monitored by several sensors and put together by a flow control. It is designed to prevent dangerous movements.
The hydraulic compensation system will keep the basket leveled to the ground all the time without any interaction required from the operator. For specific needs and tricky situations, there is a manual override.
The wind factor needs to be considered at all time when working in heights. Easy Lift units are fully safe under 28 Mph.
All Easy Lift units’ booms and structural components are made from Swedish high tensile flexible Domex SSAB steel. It allows the production of smaller, yet more resistant components.
► VIDEO: Boom flex demonstrationAll units are equipped with 2 standard harness anchor points located inside the aluminum basket. An additional anchor point is located on the fiberglass basket’s floor if the unit is equipped with this basket.
All units are equipped with independently operable high speed booms, allowing far better insertion strategies and a lot more flexibility.
This is defined by how easy will you be able to climb any given obstacle (stairways, slopes, crosswalks, etc.) with limited use of ramps, wood blocks or else. The knowledge of this standard Easy Lift feature is crucial to make the best choice. This will be a blessing each and every time the unit will be used.
► VIDEO: Climbing ability vs departure angleThere are multiple outrigger positions since every outrigger is mounted on a swing-out pivot, allowing standard position (wide), narrow position or, for crowded floors, it is possible to mix positions for more flexibility.
► VIDEO: Turret rotation amplitude demonstrationAll units are equipped standard with GFI double outlet, with cable running through the boom. Perfect to use electric tools up in the basket.
A standard 3000 PSI air/water line runs from ground to basket through the boom to offer more flexibility and less weight in the basket.
The passive stability management system is a working envelope monitored by several sensors and put together by a flow control. It is designed to prevent dangerous movements.
All pivot points are easily accessible to prevent jerking, squeaking and insure a smooth pivot articulation.
The LIVE hydraulic levers/ grippers allow smooth movements both from ground controls and basket controls. ( the system may be different on each model )
► Full hydraulic. Full SimpleThe electrical system is composed of standard 12V, North American, easy to find, Solid State, and compatible components. No hassle in finding 24V parts!
All hoses and harnesses are routed inside of the boom, and protected by a heavy duty unbreakable patented telescopic power track. All hoses and harnesses can be inspected and replaced quickly right on the job site.
Wear pads can be adjusted easily, no shimming required. Most can be replaced without the need to de-booming for extra convenience.
All Easy Lift units’ booms and structural components are made from Swedish high tensile flexible Domex SSAB steel. It allows the production of smaller, yet more resistant components.
► VIDEO: Boom flex demonstrationAll pivot points are easily accessible to prevent jerking, squeaking and insure a smooth pivot articulation.
Although it is far more convenient to be two men to move a basket, casters will make your task possible even if you’re alone. No need to carry a dolly, just pure efficiency.
► VIDEO: How easy to move basket with castersMulti-layer powder coat baked paint is applied before parts assembly, offering the same protection everywhere on parts. This option will allow color matching through the RAL International Color Code to paint your unit with your own company colors.
Bringing a harmed operator or broken basket control to the ground is always possible from the base using the emergency descent procedure. The electric 12V emergency pump just makes it easier since no manual pumping is required to move the oil and build pressure.
► VIDEO: Difference between manual & 12V electricThis configuration is made for those who primarily work indoors. Equipped with the world record holding company for long range vehicle battery operation Kaitec lithuim-ion battery pack. No wire, no combustion and no boundaries. The ultra-fast charger can be powered by either 110V or 208-240V AC power.
Never leave black marks anymore on any surface: concrete, brick patio, stone, marble, wood, epoxy coating, and so on. You will drive on non-marking tracks with peace of mind and won’t need to bite on your profit to clean up afterwards.
► Video comparing black vs non-marking tracksThe outriggers needs some travel when they lift tracks off the ground. There are a few options available: 16 X 24 or 20 X 40 with or without sliding rails. Custom-made Teflon pads are designed to insure best load of each leg as well as best performance overall for operator.
With increasing safety regulations, this small option will soon make a huge difference and determine whether you will be able to go or not on a jobsite. Well worth it!
For a better view of the working area, under all circumstances, this powerful lamp will bring the sun everywhere.
